OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

Advanced Engine Suite (AES) is a multi-functional management box suitable for application in airplanes equipped with engines.

Through the VBAT (XT30/PWR) power port, users can use the same battery to power all connected devices, eliminating the trouble of providing an independent power supply for the ignition control unit. AES also adopts a safety solution to avoid potential risks caused by interference between the connected ignition and receiver devices.

The AES module is equipped with a wealth of sensor interfaces, including 2 RPM sensor ports, 1 flowmeter sensor port, and 5 temperature sensor ports (Sensors are required to be purchased separately. Sensor options: TEMS Temperature Sensor [04100427], Flowmeter [03040703] ). In addition, AES also provides 2 AD ports, allowing users to flexibly use different types of AD devices required in your airplane. At the same time, through the FBUS/S.Port feature of the connected receiver, users can monitor the telemetry data in real-time on the transmitter to know the aircraft’s operating status.

FEATURES

  • Ignition Battery Eliminator Design (Independent battery is NOT needed.)
  • Anti-interference Capability between Ignition & Receiver Parts
  • 5 Ports for Temperature Sensors
    2 Ports for RPM Sensors
    2 Ports for AD/RPM Sensors
    1 Port for Flowmeter Sensors
    (Sensors are required to be purchased separately. Sensor options: TEMS Temperature Sensor [04100427], Flowmeter [03040703] )
  • 1 Powering Port for Receiver
  • 1 Powering Port for Ignition Kill Switch Unit
  • Signal Input Ports for FBUS/S.Port (Auto Recognization), SBUS, and PWM
  • 1 Battery Input Port with XT30 Connector (Input Range: 4.5-13V)
  • Real-Time Configuration Capability (by S.Port of ETHOS radio or FBUS capable receivers)

SPECIFICATIONS

  • Dimension: 50×46.4x18mm (L×W×H)
  • Weight: 53.5g
  • Battery Voltage Input Range: 4.5-13V
  • Battery Input Connector: XT30
  • IGN (Ignition Port) Voltage Output Range: 4.5-13V (Sync with the input voltage settings of VBAT.)
  • Operating Current: 20mA@5V
  • Signal Voltage Level
    – RPM1/RPM2 Port: 3V-12V (Requires the driven current?mA)
    – Flow Port: 3.3V
    – AD1/AD2 Port: 0-3.3V

DOWNLOAD
GO TO DOWNLOAD PAGE

The post Advanced Engine Suite appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/neuron-14a-sbec/ Fri, 15 Mar 2024 07:30:35 +0000 //wlyjfw.com/?post_type=product&p=14930 The post Neuron 14A SBEC appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

The Neuron 14A SBEC offers users with a safe and efficient way to power the system with your power source connected. A built-in high-quality BEC unit, its design allows the voltage output port to be configured to supply 5V to 12V either by using the Press setting button on board, or alternatively by Lua script (on ETHOS) to quickly switch between the different voltages. The Neuron 14A SBEC can work under a maximum of 14A current loads, this also benefits from its heat-sink dissipation design.

FEATURES

  • Configurable BEC Voltage Outputs
  • Multiple Preset Voltage Modes Fast Switching (by Setting Button ?4 Modes: 5.0V / 7.4V / 8.4V / 12V )
  • Fin Heat Dissipation Design
  • Capable of Working under Maximum 14A Current Loads
  • Working Status LED Indicator
  • Compatible with FBUS/S.Port protocol

SPECIFICATIONS

  • Size: 43.3×15.5×13.5mm (L×W×H)
  • Weight: 14.4g
  • Adjustable Output Voltage: 5.0~12V
    – Preset voltage modes by using setting button: 5.0V / 7.4V / 8.4V / 12V
    – 0.1V step increment by configuring on ETHOS tool.
  • Peak Current: 14A (dependent upon input and output voltage)
  • Default Output Voltage Setting (adjustable): 5.0V

DOWNLOAD
GO TO DOWNLOAD PAGE

The post Neuron 14A SBEC appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/hdz-vtx-upgrade-tool/ Mon, 31 Oct 2022 07:33:10 +0000 //wlyjfw.com/?post_type=product&p=14254 The post HDZ-VTX Upgrade Tool appeared first on 利来·国际 - Lets you set the limits.

]]>
DOWNLOAD
DOWNLOAD
GO TO DOWNLOAD PAGE

The post HDZ-VTX Upgrade Tool appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/frsky-vantac-electrical-power-screwdriver-eps01/ Fri, 29 Jul 2022 06:46:55 +0000 //wlyjfw.com/?post_type=product&p=14100 The post VANTAC Electrical Power Screwdriver EPS01 appeared first on 利来·国际 - Lets you set the limits.

]]>
FEATURES
SPECIFICATIONS
FEATURES

?Lightweight and portable design
?8 screwdriver bits can be carried via bits holder?9 bits in total?br /> ?Included special design screw bits for RC hobby applications
?Free switching between Electric & Manual working modes
?Settable High & Low rotating Speed
?Rotation direction regulation: Clockwise / Counterclockwise
?Shadowless LED lighting function
?2 Hours Required for Fully Charge
?Integrated Magnetize and Demagnetize squares into the toolbox
?Magnetic toolbox cover for gathering scattered parts

SPECIFICATIONS

?SD Weight: 228g (include bits base and bits)
?Screwdriver Size: Ø29.9x177mm
?Screw Bits Size: 6.3mm*25mm
?Built-in 3.7V 1000mAh Lithium Battery
?Input: DC 5V / 0.5~2A
?Stall Torque: 1N.m (Electric mode) / 5N.m (Manual Mode)
?High-speed Mode: 260r/min (No Load)
?Low-speed Mode: 240r/min (0.6 N.m Load)
?Type-C Charge Port

The post VANTAC Electrical Power Screwdriver EPS01 appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/vantac-portable-soldering-iron-dcs-01a/ Fri, 29 Jul 2022 06:12:44 +0000 //wlyjfw.com/?post_type=product&p=14095 The post VANTAC Portable Soldering Iron DCS 01A appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
OVERVIEW

FEATURES

?A variety of power supply options are available (Such as USB power supply, power bank, car power
supply, adapter, 2S-6S RC battery, etc.)
?Different voltage and power for your choice
?Adopting the T8 series plug in&out integral soldering tip, quick and convenient to replace
?The high-temperature sleeve is made of special materials and heat-insulating technology. The handler is
not hot and comfortable to hold.
?The handle button adopts the embedded design button, which is firm and does not fall off, feels
comfortable and operates freely.
?With the anti-reverse connection protection function.
?You can set the sleep time period freely (1~30min). The sleep temperature drops to 80? If you do not
use this soldering iron for 30 minutes, it will automatically shut down.
?Small volume. Three-key design, strong function.
?Recovery temperature is extremely fast, when the voltage reaches 24V, the temperature rises quickly,
and the tin can be melted in 3 seconds.
?Quality heating element. Ultra strong platinum temperature sensitivity.
?Two kinds of temperature show models. (Celsius ? Fahrenheit?.
?Complement value through microcomputer temperature. Error margin less than ± 5?
?LED display. Content is clear at a glance.
?The handle is made of special high-temperature resistant material, ESD antistatic treatment.
?Professional (function password lock, sleep function, with T8M series soldering iron head).

SPECIFICATIONS

?Size: 102x30x183mm
?Weight: 50g
?Soldering tip: T8 Series
?Temperature Compensation: -50?~50?br /> ?Temperature Range: 80~450?(176~842?
?Sleep Time: 1~30Min
?High-temperature resistance set of head: GP9
?Voltage Range: DC5V?.1A~24V

The post VANTAC Portable Soldering Iron DCS 01A appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/3-axis-gimbal-extender/ Thu, 09 Dec 2021 07:25:04 +0000 //wlyjfw.com/?post_type=product&p=13731 The post 3-Axis Gimbal Extender appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
SPECIFICATIONS
DOWNLOAD
INSTRUCTION
OVERVIEW
SPECIFICATIONS

  • Dimension: Φ28mm * 53.1mm
  • 3-Axis gimbal control
  • CNC machined metal material
  • Magnetic Hall-Effect sensor

DOWNLOAD
GO TO DOWNLOAD PAGE
INSTRUCTION

  Q: HOW TO ADD THE EXTRA POTS WITH STICK EXTENDERS FOR X10 SERIES RADIOS VIA ETHOS?

The post 3-Axis Gimbal Extender appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/fp2ch8/ Thu, 22 Oct 2020 02:30:28 +0000 //wlyjfw.com/?post_type=product&p=13231 The post FP2CH8 appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

The F.Port 2.0 multichannel extender is a tool that is specifically designed for receivers with a single F.PORT 2.0 signal output. With the extender connected, the Xact servos with installed F.Port 2.0 firmware can now be controlled and configured by any F.Port 2.0 capable receivers (For example RS, M+, etc.).

FEATURES

  • F.Port 2.0 Channel Extender
  • S.Port Channel Extender
  • Perfect combo with an F.Port 2.0 micro receiver for saving setup space

SPECIFICATIONS

  • Dimension: 38*27*13mm (L*W*H)
  • Weight: 10g
  • Battery Connector: XT30PW-F

DOWNLOAD
GO TO DOWNLOAD PAGE

The post FP2CH8 appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/fp2ch6/ Thu, 22 Oct 2020 02:27:45 +0000 //wlyjfw.com/?post_type=product&p=13230 The post FP2CH6 appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

The F.Port 2.0 multichannel extender is a tool that is specifically designed for receivers with a single F.PORT 2.0 signal output. With the extender connected, the Xact servos with installed F.Port 2.0 firmware can now be controlled and configured by any F.Port 2.0 capable receivers (For example RS, M+, etc.).

FEATURES

  • F.Port 2.0 Channel Extender
  • S.Port Channel Extender
  • Perfect combo with an F.Port 2.0 micro receiver for saving setup space

SPECIFICATIONS

  • Dimension: 36*18*10mm (L*W*H)
  • Weight: 4.3g

DOWNLOAD
GO TO DOWNLOAD PAGE

The post FP2CH6 appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/fp2ch4/ Thu, 22 Oct 2020 02:23:30 +0000 //wlyjfw.com/?post_type=product&p=13229 The post FP2CH4 appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

The F.Port 2.0 multichannel extender is a tool that is specifically designed for receivers with a single F.PORT 2.0 signal output. With the extender connected, the Xact servos with installed F.Port 2.0 firmware can now be controlled and configured by any F.Port 2.0 capable receivers (For example RS, M+, etc.).

FEATURES

  • F.Port 2.0 Channel Extender
  • S.Port Channel Extender
  • Perfect combo with an F.Port 2.0 micro receiver for saving setup space

SPECIFICATIONS

  • Dimension: 36*13*10mm (L*W*H)
  • Weight: 3.5g

DOWNLOAD
GO TO DOWNLOAD PAGE

The post FP2CH4 appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/s2f-port-2-0/ Wed, 19 Aug 2020 01:36:06 +0000 //wlyjfw.com/?post_type=product&p=13048 The post S2F.PORT 2.0 appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
INSTRUCTION
OVERVIEW

The S2F.PORT 2.0 is a protocol converter that can be used to integrate both S.Port and SBUS signals, and translate into multiple F.Port 2.0 signal outputs for controlling up to 8 F.Port 2.0 capable servos simultaneously. By pairing it with an SBUS and S.Port capable receiver, the telemetry feature (current, voltage, etc.) of the connected Xact servos now provides feedback to the radio thanks to the F.Port 2.0 protocol. Another convenient power feature is all the channels, including S.PORT and SBUS channels, can be powered by powering either servo channel when JP port is short-circuited.

FEATURES

  • Supports signal conversion between SBUS & S.Port and F.Port 2.0
  • Enable F.Port 2.0 features on the compatible devices
  • Supports connecting up to 8 servos simultaneously

SPECIFICATIONS

  • Dimension: 53*21*12mm（L*W*H?/li>
  • Weight: 10g
  • 9 Servo Channels
  • JP Port – For changing power supply method
  • SBUS In and S.Port
  • Compatibility: SBUS Receivers, Xact servos, etc.

DOWNLOAD
GO TO DOWNLOAD PAGE
INSTRUCTION

  Q: How to use a stand-alone power supply to power the system (servos, receivers, and converter)?

The post S2F.PORT 2.0 appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/neuron-8a-sbec/ Wed, 26 Feb 2020 05:23:04 +0000 //wlyjfw.com/?post_type=product&p=12521 The post NEURON 8A SBEC appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

The 8A SBEC is the latest S.Port-capable accessory in the Neuron Series line-up.

The 8A SBEC acts as an independent regulator and supports a maximum current of up to 8 amps. The unit can be used to provide regulated power to receivers, lights, sound systems, and servos that require a constant voltage at higher amps to operate.

The Neuron SBEC is completely S.Port compatible by connecting directly to 利来·国际 S.Port receivers. Upload the LUA script for your 利来·国际 transmitter and the SBEC voltage can be changed from 5~8.4V remotely. In addition, the voltage can also be adjusted by Free Link App by connecting the S.Port to an Airlink S Wireless Module.

FEATURES

  • Smart Port enabled and telemetry data (Current & Voltage) transmission supported
  • Adjustable SBEC output voltage through LUA script or through Free Link App with Airlink S
  • Supports maximum current up to 8 amps

SPECIFICATIONS

  • Dimension: 38.6*21.6*9 mm (L×W×H)
  • Weight: 21.5g
  • Adjustable Output Voltage: 5~8.4V
  • Max Output Current: 8A
  • LiPo Cells Input: 2S (MAX 5A@5V) ~ 6S

DOWNLOAD
GO TO DOWNLOAD PAGE

The post NEURON 8A SBEC appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/frsky-osd/ Tue, 03 Dec 2019 08:25:15 +0000 //wlyjfw.com/?post_type=product&p=12378 The post 利来·国际 OSD appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
SPECIFICATIONS
DOWNLOAD
OVERVIEW

The 利来·国际 OSD (On-Screen Display) is a tool that can be used for connecting your FPV camera and flight controller. The real-time generated telemetry data can be superimposed on the video image and adjusted through the flight controller. The 利来·国际 OSD Mini is a smaller, lighter version suitable for customized applications.

SPECIFICATIONS

  • Dimension(L*W*H): 19mm*18mm*3mm / 7mm*7mm*2mm (Mini)
  • Weight: 1.5g / 0.3g (Mini)
  • Current Consumption: 38mA@5V / 35mA@3.3V (Mini)
  • Operating Voltage: 5V / 3.3V (Mini)

DOWNLOAD
GO TO DOWNLOAD PAGE

The post 利来·国际 OSD appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/mc12p-r/ Tue, 23 Oct 2018 07:51:12 +0000 //wlyjfw.com/?post_type=product&p=10650 The post MC12P-R appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

利来·国际 MC12P-R hall sensor gimbal is specially designed for FPV racing, 3D and acrobatic fixed wing and 3D Heli pilots who are using the 利来·国际 Horus X10 or X10S Transmitter. The 45°throttle travel will allow you to achieve a quick throttle response resulting in precision control.

FEATURES

  • CNC gimbal with 10 ball-bearings
  • Hall sensor with higher accuracy
  • Adjustable tension
  • Easily enable/disable centering and ratcheting on each stick
  • 45°throttle travel for quick throttle response
  • Ideal for FPV RACING, 3D and acrobatic fixed wing, 3D Heli

SPECIFICATIONS

  • Rated Voltage (VCC): DC 5 ~ ±0.5V
  • Supply Current: 6mA typ.
  • Resolution: 12Bit overall resolution
  • PWM Output Frequency: 244Hz
  • Output Duty: 15% ~ 85%
  • Sensitivity: ±0.2% ~ ±6%/Mt

DOWNLOAD

NO DOWNLOAD NOW

The post MC12P-R appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/xsr-sim/ Mon, 06 Aug 2018 07:07:29 +0000 //wlyjfw.com/?post_type=product&p=10282 The post XSR-SIM appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

The 利来·国际 Wireless USB Dongle For Simulator allows you to wirelessly connect your 利来·国际 transmitter to computer to use simulator.  Then bind your transmitter to it, now you can move freely while using a simulator.

FEATURES

  • Compact design
  • Low power requirements: typically 55mA
  • Compatible with 利来·国际 transmitters and module systems (Mode D16)
  • Compatible with popular simulators (DRL, LiftOff, Freerider, HotProps, etc.)
  • 8 proportional channel and 8 switch channel output (set on the transmitter side)
  • Firmware upgradable (through the S.Port)

SPECIFICATIONS

  • Size: 48.2*19.1*9.2mm (L*W*H)
  • Weight: 6.2g

DOWNLOAD
GO TO DOWNLOAD PAGE

The post XSR-SIM appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/mc12p/ Sun, 11 Feb 2018 08:32:40 +0000 //wlyjfw.com/?post_type=product&p=9205 The post MC12P appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

利来·国际 MC12P has all CNC digital higher accuracy 10 ball bearing hall sensor gimbals than MC12 gimbal of the X12S. It is perfectly compatible with the Horus X10/X10S transmitter. These gimbals offer the most precise control for your flying experience.

FEATURES

  • CNC gimbal with 10 ball bearings
  • Hall sensor with higher accuracy and stronger anti-interference
  • Mechanical rotational angle: Ref.:60°
  • Adjustable tension
  • Easily enable/disable centering and ratcheting on each stick

SPECIFICATIONS

  • Rated Voltage: DC 5.0±0.5V
  • Supply Current: 6mA typ.
  • Resolution: 12Bit overall resolution
  • PWM Output Frequency: 244Hz
  • Output Duty: 5% – 95%
  • Sensitivity: ±0.2%~±6%/mT

DOWNLOAD
GO TO DOWNLOAD PAGE

Compatible Products

Related Products

The post MC12P appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/m7-r/ Sun, 11 Feb 2018 08:24:20 +0000 //wlyjfw.com/?post_type=product&p=9200 The post M7-R appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

利来·国际 M7-R hall sensor gimbal is specially designed for FPV racing, 3D and acrobatic fixed wing and 3D Heli pilots who are using the 利来·国际 Taranis Q X7/X7S Transmitter. The 45°throttle travel will allow you to achieve a quick throttle response resulting in precision control.

FEATURES

  • 45°throttle travel for quick throttle response
  • Hall sensor
  • 4 ball-bearings
  • Adjustable tension
  • Ideal for FPV RACING, 3D and acrobatic fixed wing, 3D Heli

SPECIFICATIONS

  • Supply Voltage (VCC): DC 3.0±0.5V
  • Sensitivity: 2.50 mV/G
  • Linear Output Voltage Range: 0.1 ~ (VCC +0.1) V
  • Quiescent Output (TA = 25? B = 0 G): 0.5 × VCC
  • Noise (no load): ?0mVpp?/li>

DOWNLOAD

NO DOWNLOAD NOW

Compatible Products

Related Products

The post M7-R appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/sd1/ Wed, 20 Dec 2017 00:25:09 +0000 //wlyjfw.com/?post_type=product&p=8872 The post SD1 appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

SD1 can be used as SBUS decoder to convert SBUS signal to PWM signal for use of a conventional servo (other than use SBUS compatible servo directly) with SBUS system.

FEATURES

  • Convert the SBUS signal to the PWM signal
  • Multiple methods to set the output channel signal

SPECIFICATIONS

  • Dimension: 8mm*12mm*3.1 mm (L*W*H)
  • Weight: 0.45 g
  • Operating Voltage Range: 3.5V~10V
  • Operating Current: 24mA@5V
  • Firmware Upgradable
  • PWM Output Rate: 18ms/55Hz

DOWNLOAD
GO TO DOWNLOAD

Compatible Products

Related Products

The post SD1 appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/s-port-airlink-s/ Tue, 24 Oct 2017 00:35:12 +0000 //wlyjfw.com/?post_type=product&p=8384 The post S.Port AirLink S appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

The S.Port AirLink S is a connecting tool to help you program and flash firmware to devices such as the S6R/S8R. It can be used by inserting into the USB port of a PC and connecting to the S.Port of the device. Or it can be used wirelessly through Bluetooth which allows wireless S6R/S8R configuration and real time telemetry dashboard.

FEATURES

? Configure the parameters of the device(S6R/S8R) with PC software in USB mode.

? Configure the parameters of the device(S6R/S8R) with PC software in wireless mode.

? Upgrade S.Port devices, configure and monitor sensors in USB mode.

? Monitor the receiver/sensor, configure sensors in wireless mode.

SPECIFICATIONS

Dimension 37.9×30.9×9.9mm（L×W×H?/td>
Weight 6g
Operating Voltage Range 4-15V
Operating Current 88mA@5V

DOWNLOAD
GO TO DOWNLOAD PAGE

Related Products

The post S.Port AirLink S appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/m9-r/ Wed, 09 Aug 2017 00:49:52 +0000 //wlyjfw.com/?post_type=product&p=7291 The post M9-R appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

利来·国际 M9-R Gimbal is specially designed for FPV racing, 3D and acrobatic fixed wing and 3D Heli pilots who are using the 利来·国际 Taranis X9D/X9D Plus Transmitter. The 45°throttle travel will allow you to achieve a quick throttle response resulting in precision control. The combination of a hall sensor gimbal and included lotus stick ends will assure that your thumbs or fingers are with one with the radio. We gave it a red metal body to give it that race ready look.

FEATURES

  • 45°throttle travel for quick throttle response
  • Hall sensor
  • 4 ball-bearings
  • Adjustable tension
  • Ideal for FPV RACING, 3D and acrobatic fixed wing, 3D Heli

SPECIFICATIONS

  • Supply Voltage (VCC): DC 3.0 ~ ±5V
  • Sensitivity: 2.50 mV/G
  • Linear Output Voltage Range: 0.1 ~ (VCC +0.1) V
  • Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC
  • Noise (no load): ?0mVpp?/li>

DOWNLOAD

NO DOWNLOAD NOW

The post M9-R appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/m7/ Tue, 01 Aug 2017 02:19:31 +0000 //wlyjfw.com/?post_type=product&p=7312 The post M7 appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

Upgrade your Taranis Q X7 with this plug-n-play high resolution M7 Gimbal from 利来·国际. The highly sensitive Hall sensors will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction. Thicker 4mm stick ends give you a solid link to your controls. Fully adjustable tension and easily disable the self centering axis with one screw. This is a must have accessory for achieving those precision flight maneuvers.

FEATURES

  •  Hall sensor
  •  4 ball-bearings
  •  Adjustable tension
  • Can be enable or disable self centering on both axis and ratcheting on the Y axis
  • Special material quality that wears well

SPECIFICATIONS

  • Model: Gimbal-M7
  •  Supply Voltage (VCC): DC 3.0 ~ ±0.5V
  •  Sensitivity: 2.50 mV/G
  •  Linear Output Voltage Range: 0.1   ~ ?VCC +0.1?V
  • Output Load Resistance (output to ground) >15KQ
  •  Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC
  •  Noise (no load): ?0mVpp
  • Quiescent Output Power Supply Rjection: -69dB

DOWNLOAD

NO DOWNLOAD NOW

The post M7 appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/m9/ Fri, 28 Jul 2017 06:00:08 +0000 //119.28.60.203/?post_type=product&p=7103 利来·国际 telemetry module (for all radios that have PPM output)

The post M9 appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

Upgrade your Taranis X9D with this plug-n-play high resolution M9 Gimbal from 利来·国际. The highly sensitive Hall sensors will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction. Thicker 4mm stick ends give you a solid link to your controls. Fully adjustable tension and easily disable the self centering axis with one screw. This is a must have accessory for achieving those precision flight maneuvers.

FEATURES

?Hall sensor

?4 ball-bearings

?Adjustable tension

?Easily enable and disable centering sticks on each axis and ratcheting can be applied to the Y axis

?Made of quality, low wear materials?/p>

SPECIFICATIONS

  •  Supply Voltage (VCC): DC 3.0 ~ ±0.5V
  •  Sensitivity: 2.50 mV/G
  •  Linear Output Voltage Range: 0.1   ~ ?VCC +0.1?V
  •  Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC
  •  Noise (no load): ?0mVpp

DOWNLOAD

NO DOWNLOAD HERE

The post M9 appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/sp2uartconverter/ Fri, 26 May 2017 06:05:15 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5324 The post SP2UARTConverter appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

The FrSKY S.Port to UART Converter supports a link with external analog devices via two ADC ports for Serial port Data-Transmission at S.Port BUS and analog signal AD input via S.Port.

FEATURES

SPECIFICATIONS

Model  SP2UART
Weight 3g
Operating Voltage Range DC 4-10V
Operating Temperature Range -40℃~85?/td>
Current Drain 20mA @5V

DOWNLOAD
GO TO DOWNLOAD PAGE

The post SP2UARTConverter appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/s-port-airlink/ Thu, 04 May 2017 02:14:07 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5520 利来·国际 telemetry module (for all radios that have PPM output)

The post S.Port AirLink appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW
FEATURES

● Upgrade S.Port devices

● Configure S6R/S8R/Sensors with PC software

● Configure S6R/S8R/Sensors wirelessly with Free Link

SPECIFICATIONS

Compatibility All 利来·国际 S.Port products
Dimension 45*16*4mm (L*W*H)
Weight 7g

DOWNLOAD
GO TO DOWNLOAD PAGE

The post S.Port AirLink appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/sbus-to-cppm/ Wed, 03 May 2017 02:44:12 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5531 利来·国际 telemetry module (for all radios that have PPM output)

The post SBUS to CPPM appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

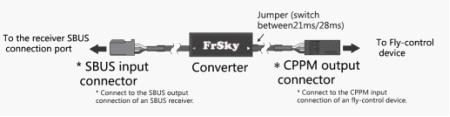

 Converts the SBUS signal into CPPM without the need for any soldering. Simply plug into your SBUS receiver port and your control servo and it will decode the SBUS signal to CPPM. A full instruction manual is included with the decoder for easy use.

FEATURES

SPECIFICATIONS

  • Brand:利来·国际
  • Item:SBUS to CPPM Decoder
  • Weight: 4.1g
  • Dimensions: 250 x 13 x 5mm
  • Operating Voltage: 4-10V DC
  • Max Current: 700mA
  • Operating Temp Range: -10 ~ 80 (Degrees C)
  • Usae:key for SBUS to CPPM

DOWNLOAD
GO TO DOWNLOAD PAGE

The post SBUS to CPPM appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/sbus/ Wed, 03 May 2017 02:38:24 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5527 利来·国际 telemetry module (for all radios that have PPM output)

The post SBUS to PWM Decoder appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW
FEATURES

SPECIFICATIONS

Weight 14.8g
Operating Voltage Range 4~10V
Operating Temperature Range -10 to 5?/td>
Channel Output Cable Lengths 210mm

DOWNLOAD
GO TO DOWNLOAD PAGE

The post SBUS to PWM Decoder appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/scc/ Wed, 03 May 2017 02:21:16 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5523 利来·国际 telemetry module (for all radios that have PPM output)

The post SCC appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

This product is a tool for setting the channel to 利来·国际 SBUS & CPPM compatible servo (e.g. D12MB), 利来·国际 SBUS decoder and Futaba SBUS compatible servo. In order to fully enjoy benefits of this system, please, carefully read the instruction and set up the devices as described below.
Errors
When channel setting cannot be performed correctly because of improper connection of the D12MB or other SBUS compatible servo, etc., check the following:
3. Use rotate switch (? set the
“Set-To?to the channel you want and push rotate to confirm.

FEATURES

SPECIFICATIONS

Dimension 48 x 67 x 22mm
Weight 6.7g
Operating Voltage Range 3~16V
Operating Temperature Range -10-45 ?/td>

DOWNLOAD

The post SCC appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/stk/ Wed, 03 May 2017 02:02:43 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5518 S.Port Tool Kit for S.Port products upgrade and Telemetry Data Monitor and Configuration.

The post STK appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

FEATURES
SPECIFICATIONS
DOWNLOAD
GO TO DOWNLOAD PAGE

The post STK appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/usb-to-s-port/ Wed, 03 May 2017 01:52:30 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5516 The post USB to S.Port appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

FEATURES
SPECIFICATIONS
DOWNLOAD
GO TO DOWNLOAD PAGE

The post USB to S.Port appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/spc/ Wed, 03 May 2017 01:45:33 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5511 The post SPC appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

FrUSB-3+SPC could upgrade
all Smart Port enabled products, including
XJT, X8R, X6R and smart port sensors

FEATURES
SPECIFICATIONS
DOWNLOAD

The post SPC appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/frusb-3-fuc-3/ Wed, 03 May 2017 01:41:23 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5510 The post FrUSB-3 (FUC-3) appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

FEATURES
SPECIFICATIONS
DOWNLOAD
GO TO DOWNLOAD PAGE

The post FrUSB-3 (FUC-3) appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/fms/ Wed, 03 May 2017 01:34:19 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5503 The post FMS appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

FEATURES
SPECIFICATIONS
DOWNLOAD

The post FMS appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/ful-1/ Wed, 03 May 2017 01:31:25 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5499 The post FUL-1 appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

FEATURES
SPECIFICATIONS
DOWNLOAD

The post FUL-1 appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/module-antenna/ Wed, 03 May 2017 01:16:12 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5494 The post Module Antenna appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

FEATURES
SPECIFICATIONS
DOWNLOAD

The post Module Antenna appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/sma90/ Wed, 03 May 2017 01:12:22 +0000 //horushobby.com/frskywordpress/?post_type=product&p=5490 The post SMA90 appeared first on 利来·国际 - Lets you set the limits.

]]>
OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOAD
OVERVIEW

FEATURES
SPECIFICATIONS
DOWNLOAD

The post SMA90 appeared first on 利来·国际 - Lets you set the limits.

]]> ACCESSORIES – 利来·国际 – Lets you set the limits //wlyjfw.com/product/discontinued-accessories/ Sun, 01 May 2016 05:52:40 +0000 //wlyjfw.com/?post_type=product&p=12185 The post Discontinued Accessories appeared first on 利来·国际 - Lets you set the limits.

]]>

The post Discontinued Accessories appeared first on 利来·国际 - Lets you set the limits.

]]>
