OVERVIEW

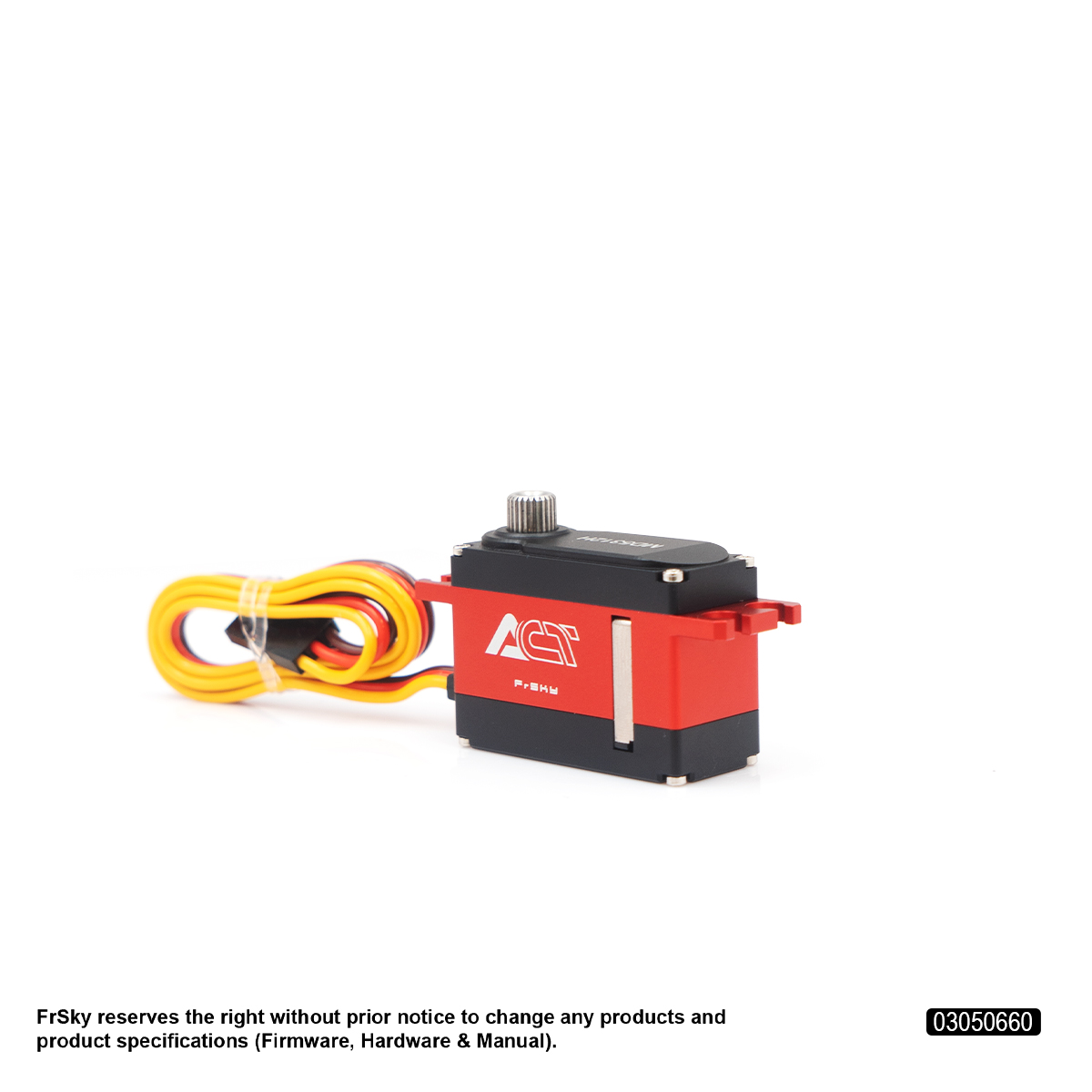

The Act series coreless servos utilize a fully CNC-machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.
The Act series servos are available in a range of models to support different torques and Speeds depending on your needs. These servos are ideally matched to models especially where power, reliability, and precision are required.
FEATURES
- High Durability with Metal Gear
- All-aluminum CNC-machined Protective Case
- 8.4V High Voltage Capability, Offering Excellent Torque with Optimal Speed Performance.
- Integrated Dual Precision Ball Bearing and Potentiometer
SPECIFICATIONS
| Act Coreless 5300 Series High-Voltage Servos | ||||||
| DIMENSION | 35.5×15×25.3mm (L×W×H) | |||||
| WEIGHT | 41.15g | |||||
| HORN SPLINE | Φ6 25T | |||||
| STALL CURRENT | 2.7A@6.0V / 3.5A@7.4V / 3.9A@8.4V | |||||
| OPERATING VOLTAGE RANGE | 4.8~8.4V | |||||
| REFRESH RATE | 1520us/50Hz | |||||
| PERFORMANCE | TORQUE|SPEED @6.0V | TORQUE|SPEED @7.4V | TORQUE|SPEED @8.4V | |||
| ACT MD5312H | 24.4 kgf.cm 338.9 Oz-in |
0.11 sec/60° | 26.2 kgf.cm 363.8 Oz-in |
0.09 sec/60° | 30.5 kgf.cm 423.6 Oz-in |
0.08 sec/60° |
