OVERVIEW

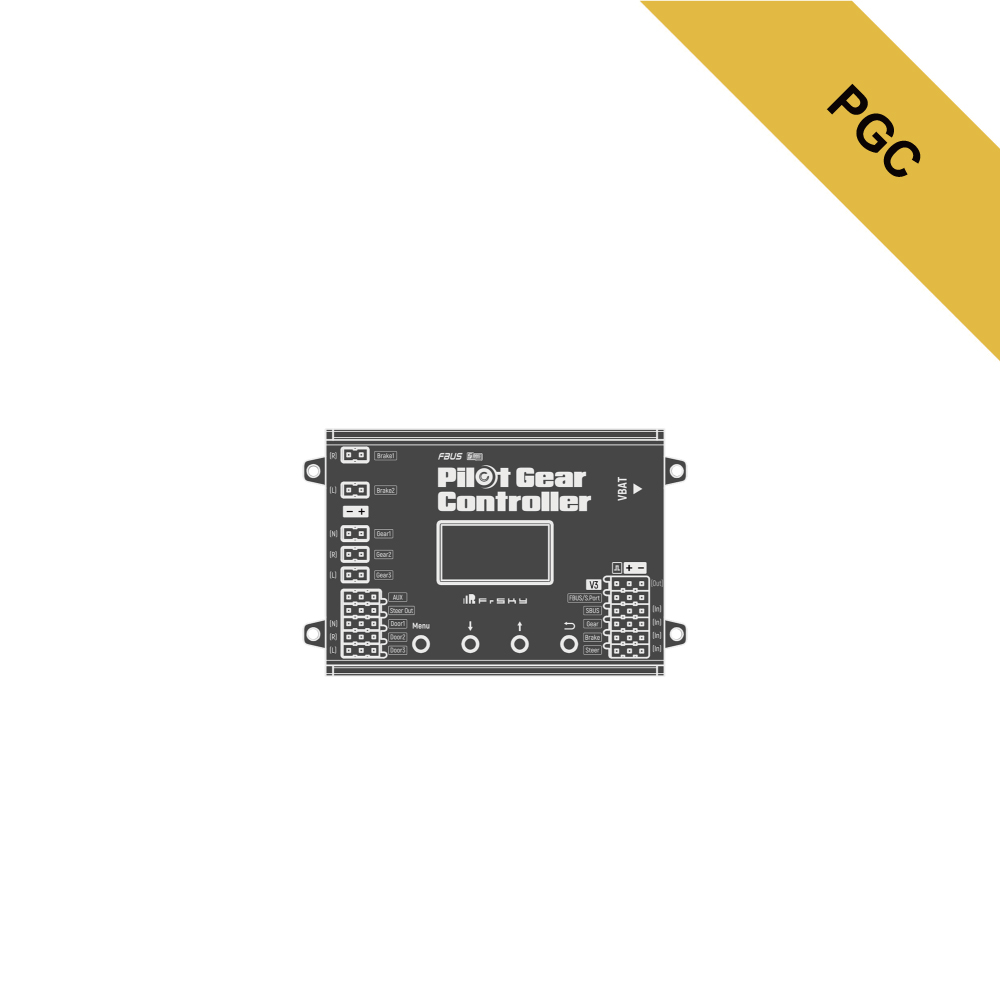

The Pilot Gear Controller (PGC) is a fully integrated system that simplifies the setup of retractable landing gear,
gear doors, brakes, and ground steering for your Turbine or large-scale model. It also features adjustable brakes
and a built-in Gyro assist system for both steering and brakes.
Apart from the standard features, the PGC also features an integrated power system that can simplify your
power distribution as well. There are 3 individual BEC voltage outputs to power various systems within the PGC
and also has the ability to power external receivers and servos if you prefer a one-battery solution.
FEATURES
- Landing & Door Gear Control System
- Adjustable Braking Performance
- Gyro Assist for Steering and Brakes
- 3 Independent Adjustable BEC Voltages
- Stable and Reliable Voltage Output
SPECIFICATIONS
- Dimension: 68.6×50×18mm (L×W×H)
- Weight: 81.6g
- Battery Input Connector: XT30
- Battery Voltage Input Range: 8.4-60V
- Operating Current: 65mA@12V
Continuous Current via V1: 5A (Up to 40W）
Continuous Current via V2: 10A
Continuous Current via V3: 10A - Adjustable Voltage Output Range：6.0V~12V
Note: When a 4s to 14s battery is used, output voltages
are fully adjustable between 6-12v. 2s or 3s battery can
be used to power the device but your set BEC voltages
need to be less than the battery’s voltage. (The output
upper limit is less than its input)
